McIntyre / Shears
Price on request
McIntyre / Shears
Price on request
United Kingdom , Nottingham
REF: R-IEF6B
Features
Category
Shears
Manufacturer
McIntyre
Model
320
Condition
Used
Year
2012

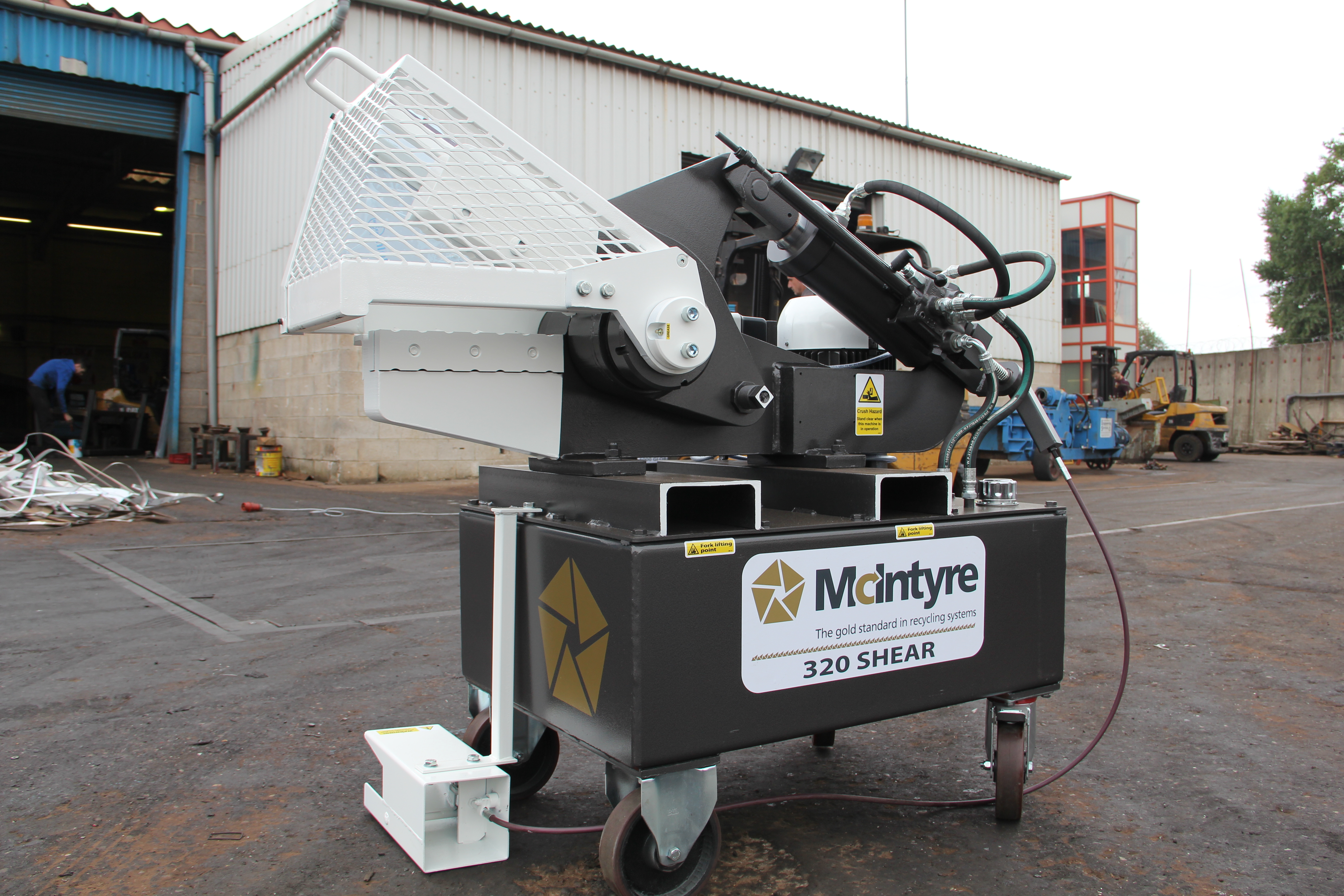

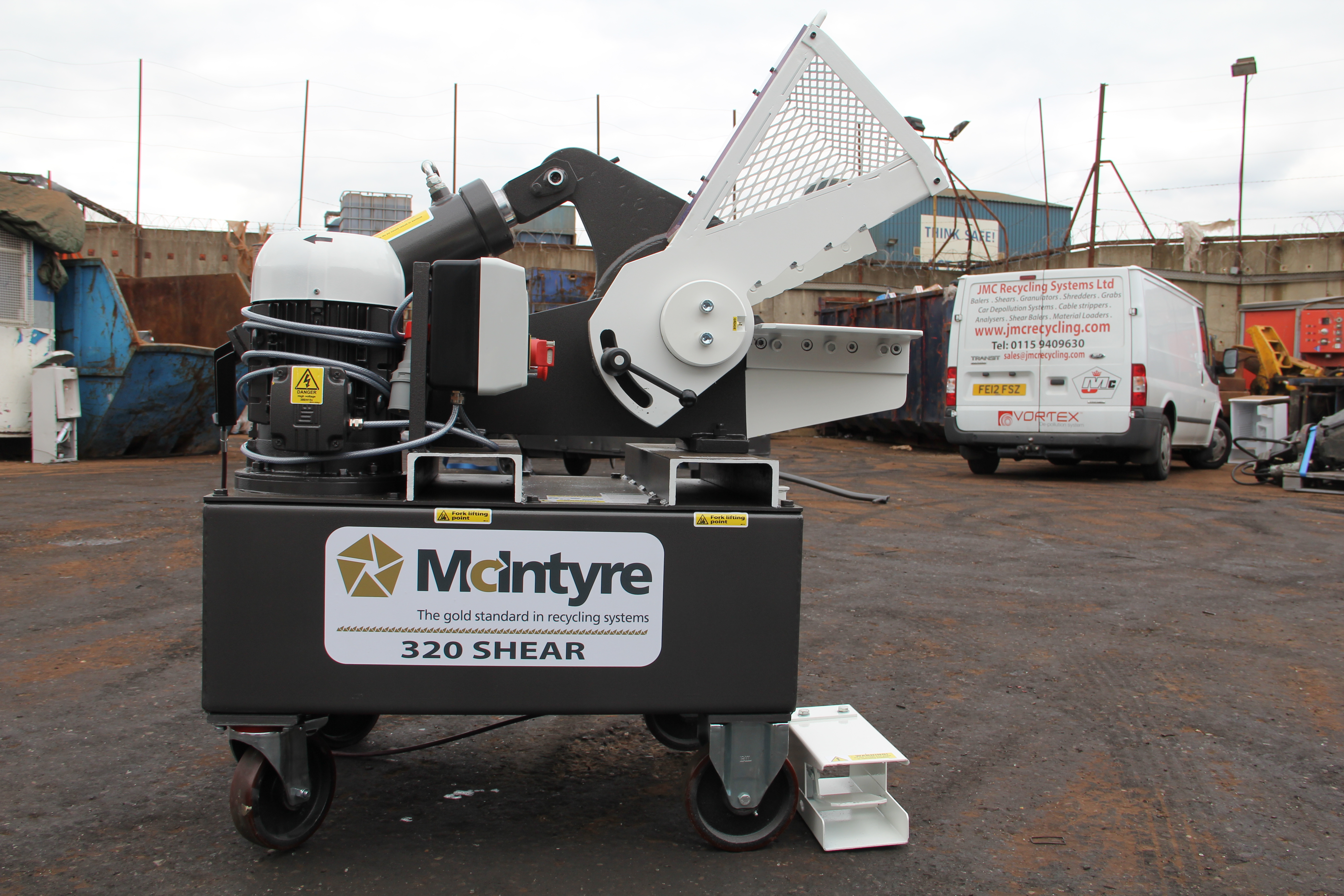

McIntyre 320 Shear x2 - One of our most popular shears, the McIntyre 320 Shear has maintained dominance in a demanding market due to its strength, quality and reliability. The 320 is powerful enough to deal with a wide range of cutting and cleaning operations and is able to handle; automotive scrap, whole gear boxes, cylinder heads and blocks, oversized gate valves and of course all the usual non ferrous metal separations. The 320 can also be used to cut ferrous metals. Technical Data Machine dimensions: 1460 x 712 x 1322mm Blade Length: 320mm / 12.5” Tip to tip opening: 165mm / 6.5” Shearing height: 910mm / 35.8” Weight with oil: 680kg Oil capacity: 200 Litres / 44 Gallons Noise Level: 75 +/- 3dBA Cut control: Single Cut repeating Standard Electrical Requirements: 32A / 3ph / 380-415v / 50Hz Power Rating: 7.5 kW / 10hp Motor speed: 1450 rpm Max system Pressure: 172 Bar / 2500 psi Max Shear force: 90 Tonnes Fully open cut speed: 16 dry cycle cuts per min 40% Stroke cut speed: 41 dry cycle cuts per min Cutting Capacity: 50mm (2”) Round Bar / 40mm (1.5”) Square Bar ***While we make every effort to ensure that our information is correct, technical data is for guidance only and subject to change. If any dimension or performance indication is important to you, please check with us before ordering.***
